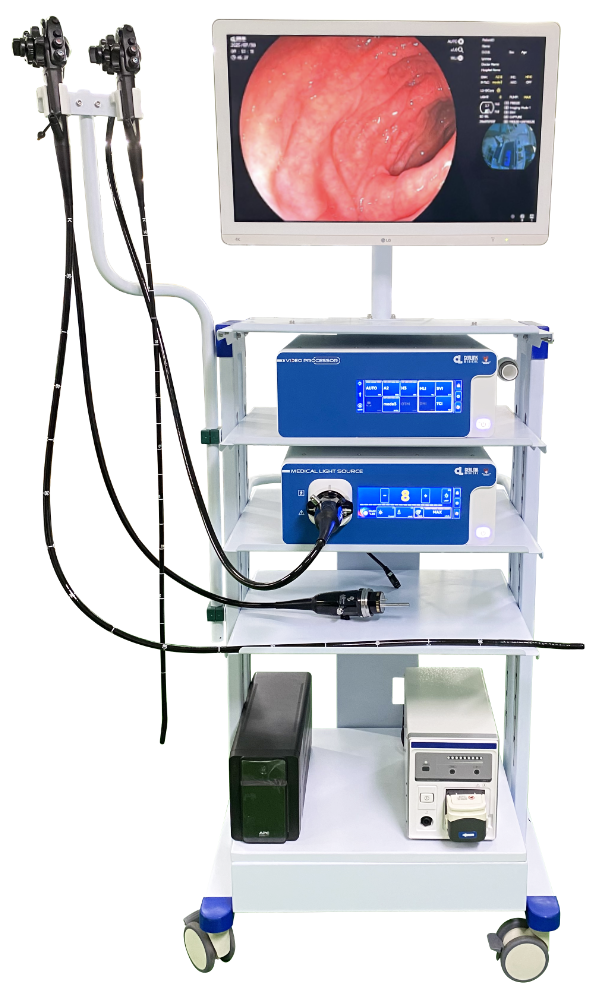

GL ECS-01 Endoscopy Camera System
Varian Gastroscopy & Colonoscopy
Alat endoskopi pertama buatan Indonesia untuk kebutuhan tindakan gastroscopy & colonoscopy.
Kamera HD/FHD
Teknologi Cold LED
Monitor 4K 27/32 Inci
Flexible Scope
Dilengkapi PC & UPS
Komponen Utama GL ECS-01 Varian Gastroscopy & Colonoscopy
Monitor Standar 4K 27 Inci
- Screen Size : 27 Inch
- Resolution : 4K (2.160 × 3.840 pixels)
- Compatibility :
- HDMI/VIDEO IN/USB
- Color System : PAL/SECAM/NTSC 4,58/NTSC 4,43
- Temperature : 0ºC to 40ºC
- Weight : 4,7 kg
Monitor Medical Grade 4K 32 Inci
- Screen Size : 32 Inch
- Resolution : 4K
- (2.160 × 3.840 pixels)
- Compatibility : HDMI/VIDEO IN/USB
- Color System : PAL/SECAM/NTSC 4,58/NTSC 4,43
- Temperature : 0ºC to 40ºC
- Weight : 4,7 kg
GL ECS-01 Medical Light Source Single Channel
- Jumlah Channel : 1
- Teknologi : Cold LED
- Flux : 4.500 lm
- Temperatur : 8.000° – 8.500° K
- Input daya : 75 VA
- Iluminansi : ≤15.000 lux
- Noise : ≤55 dB
- Durablitas LED : 10.000 jam
Camera System HD
- Type of protection against electric shock : Class I
- Operating Model :
- Continuous Operating
- Voltage : ~220V
- Frequency : 50Hz / 60Hz
- Input Power : 60 VA
- Video Signal Outputs : RGB, CVBS, Y/C, DVI, VIDEO
Camera System Fiull HD
- Type of protection against electric shock : Class I
- Operating Model :
- Continuous Operating
- Voltage : ~220V
- Frequency : 50Hz / 60Hz
- Input Power : 60 VA
- Video Signal Outputs : RGB, CVBS, Y/C, DVI, VIDEO
- Resolution : Full HD (1980 x 1080 px)
Reporting System
Versi 4K
- Motherboard : B550M Pro VDH WiFi
- Processor : AMD Ryzen 5 5600
- VGA : RTX 4060
- RAM : 16 GB DDR4 3.600 MHz
- Penyimpanan : SSD NVME TEAM MP33 256 GB, HDD SEAGATE BARRACUDA 8 TB
- Casing : VXM Mesh Dual Chamber
Flexible Scope (Gastroscopy)
- Working Length : 1050 mm
- Depth : 3-100 mm
- Range of Bending (U/D) : U210° D90°
- Range of Bending (L/R) : L100° R100°
- Diameter of Insertion Tube : 9.6 mm
- Diameter of
- Instrument Channel : 2.8 mm
- Field of View : 140°
- Forwarding Water-Jet : Yes
Flexible Scope (Colonoscopy)
- Working Length : 1650 mm
- Depth : 3-100 mm
- Range of Bending (U/D) : U180° D180°
- Range of Bending (L/R) : L160° R160°
- Diameter of Insertion Tube : 12.8 mm
- Diameter of
- Instrument Channel : 3.7 mm
- Field of View : 140°
- Forwarding Water-Jet : Yes
GL LVS-01 Electrocauter
- LCD touchscreen 8 inch
- Automatic self-test
- Real-time monitoring and instance response system for tissue density
- Ligasure vessel sealing (seal-safe)
- Endoscopic vessel sealing (endo-safe)
- Automatic Start/Stop
- Memory records features (optional)
- Compatible with argon plasma coagulation system
- Optimum smoke evacuation system
Water Pump
- Laju aliran pompa pasokan air dapat disesuaikan. Ketika rentang aliran diatur pada 0 mL/menit 99 mL/menit, deviasi yang diizinkan untuk pengaturan laju aliran adalah ±10 mL/menit. Ketika mengatur rentang aliran 100 mL/menit hingga 600 mL/menit, deviasi yang diizinkan untuk pengaturan aliran adalah ±10%.
Pasokan air dapat dioperasikan melalui foot switch dengan batas pasokan air 20 ± 2 detik per operasi sakelar. - Tegangan catu daya : ~220 V, 50 Hz
- Daya input : 50 VA
Scope Cabinet
- Bahan : Stainless steel
- Fitur : Terdapat gantungan biopsi di sisi kanan dan kiri
- Desain pintu : Pintu ayun dengan kaca
- Mobilitas : Dilengkapi roda 4 inci dengan rem pada 2 roda
- Dimensi : 110 x 50 x 200 cm
